404100
- Description
- Click Here to Inquire
Product Description

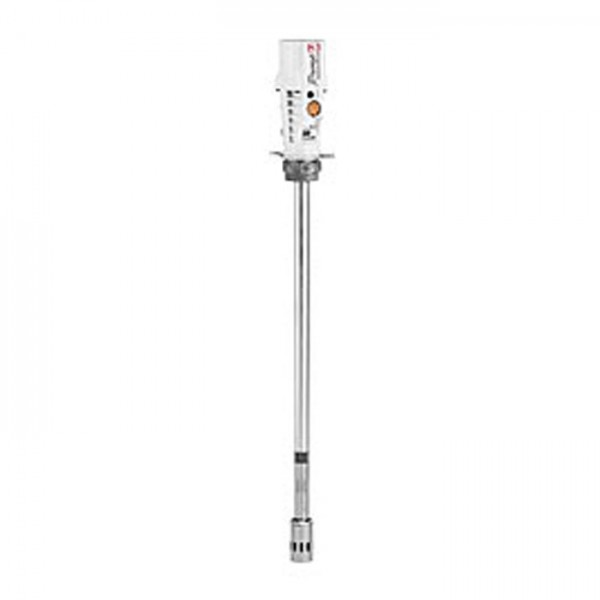

PumpMaster 3, 55:1 pressure ratio grease pump – 12,5-20 kg (40 lb) pails
Pressure ratio: 55:1
Pump tube diameter: 26 mm (approx. 1″)
Air piston diameter: 70 mm (approx. 3″)
Air piston stroke: 35 mm (1,5″)
Maximum free flow capacity: 600 gr/min (ounces / min)
Minimum air pressure: 3 bar (42 psi)
Maximum air pressure: 10 bar (140 psi)
Maximum fluid pressure: 550 bar (7.700 psi)
Air inlet: 1/4″ BSPT (F)
Fluid outlet: 1/4″ BSP (F)
