Product Description

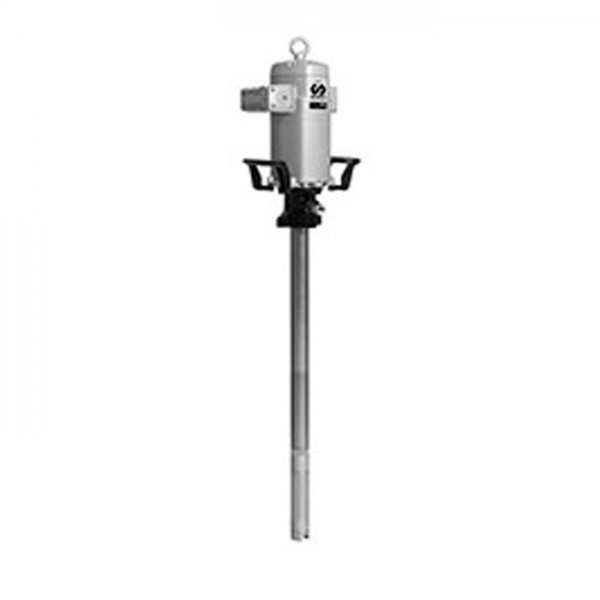

PM45 grease pump, pressure ratio 25:1 – 180 kg (A) – BSP
Model: 25 MA
Air motor size (Ø): 115 mm
Pump ratio: 25:1
Container type: 180 kg (A)
Dimensions (X-Y-Z): 502 – 855 – 50 (mm)
Max. air pressure: 14 bar
Max. fluid pressure: 350 bar
Displacement per cycle: 75 cc
Standard flow rate: 6,0 kg/min
Maximum flow rate: 16 kg/min
Weight: 24 kg
