Product Description

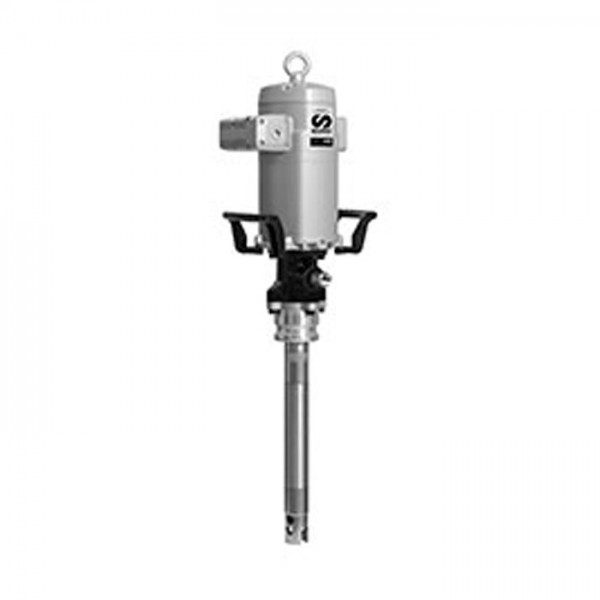

PM45 grease pump, pressure ratio 70:1 – Bulk tote (T) – BSP
Model: 70 MT
Air motor size (Ø): 115 mm
Pump ratio: 70:1
Container type: Bulk tote (T)
Dimensions (X-Y-Z): 502 – 490 – 50 (mm)
Max. air pressure: 7 bar
Max. fluid pressure: 490 bar
Displacement per cycle: 29 cc
Standard flow rate: 2,0 kg/min
Maximum flow rate: 7,5 kg/min
Weight: 21 kg
